THE ROYAL MTC™
THE ALL-IN-ONE
CNC LATHE CHUCK

The Royal MTC™ is a Revolutionary 3-Jaw Chuck, Collet Chuck, and I.D. Workholding System All-in-One

NEW

No Need to Ever Change Your Chuck Again

Switching your lathe workholding as jobs demand can be a difficult process and eats up valuable production time. But no longer! With the Royal MTC™ it’s a snap to change over between:
  • 3-Jaw Chuck
  • Quick-Grip™ CNC Collet Chuck
  • I.D. Workholding System
  • And much more…
Converting Between Jaw/Collet/I.D. Applications Takes Just Minutes and is Accomplished by Simply Swapping the Quick-Change Center Hub. The Chuck Body Never Needs to be Removed from the Lathe Spindle!
Setup Times Slashed

Change from jaw chuck to collet chuck to I.D. mandrel in minutes without ever removing the chuck from the spindle.

Ingenious Patent-Pending Design

Simply change out the hardened and ground TiN coated center hubs as applications require – chuck body always remains mounted to the lathe spindle.

Standard Top Tooling

All Royal MTC™ chucks incorporate base jaw serrations of 60° x 1.5mm as standard. Alternative base jaws with inch serrations or quick-change configurations are available as specials.

Extreme Rigidity

Much more stable than other systems because MTC™ is a true jaw-chuck with both collet and I.D. capabilities – not a collet chuck with a heavy jaw chuck hanging off the front end.

High Accuracy

Jaw repeatability is 0.0002″ –0.0003″ and the QG collet hub is guaranteed to be within 0.0003″ TIR.

Great Tool Clearance

All chuck bodies are relief milled for optimized tool clearance and reduced rotational mass.

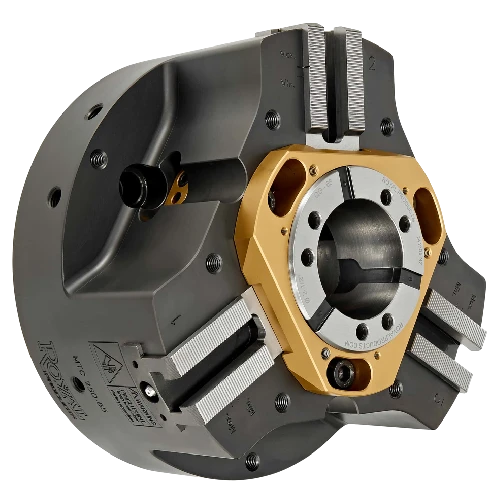

MTC
Multiple Sizes

Royal stocks the MTC™ in 8″, 10″, 12″, and 15″ versions. Backplates are available to suit all standard spindle mounts.

Unmatched Flexibility

Run virtually any job on a single CNC lathe – modular design provides the ability to seamlessly integrate additional components (5C collet adapter, face driver, etc.) as needed.

The Royal MTC™ – The Only CNC Lathe Chuck You'll Ever Need!

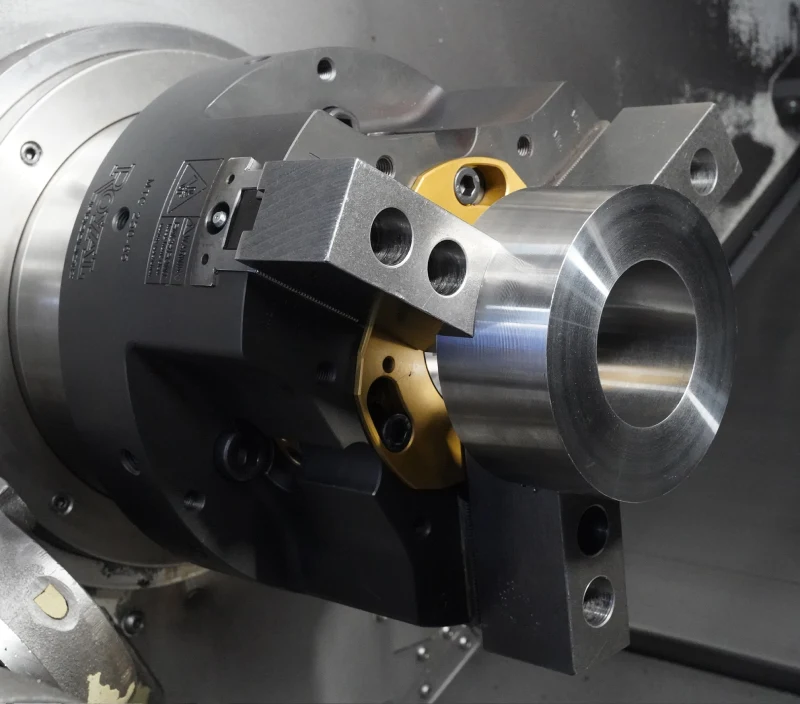

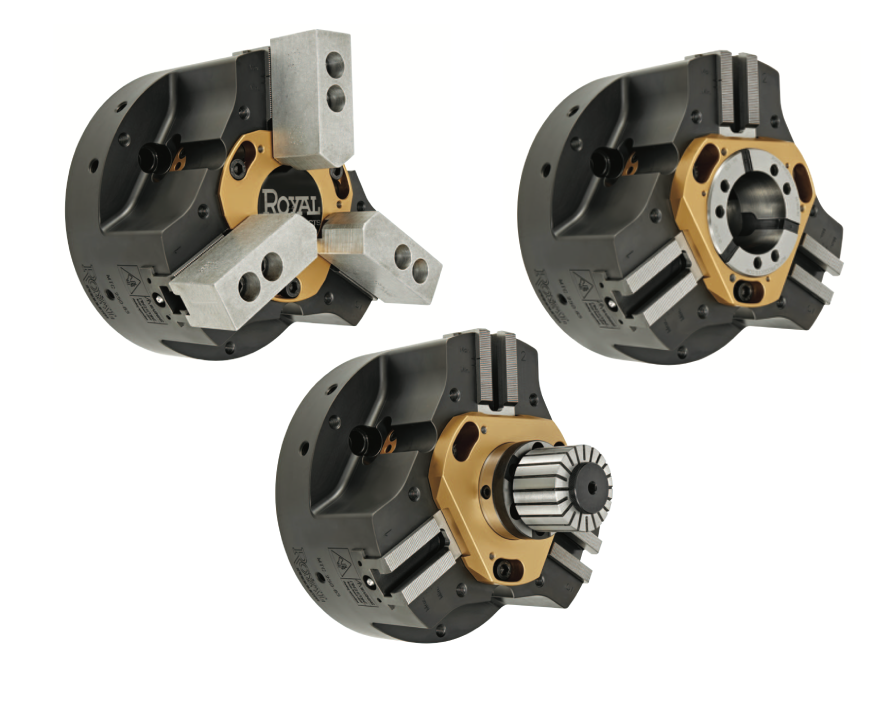

MTC-app-3j-1

Jaw Mode

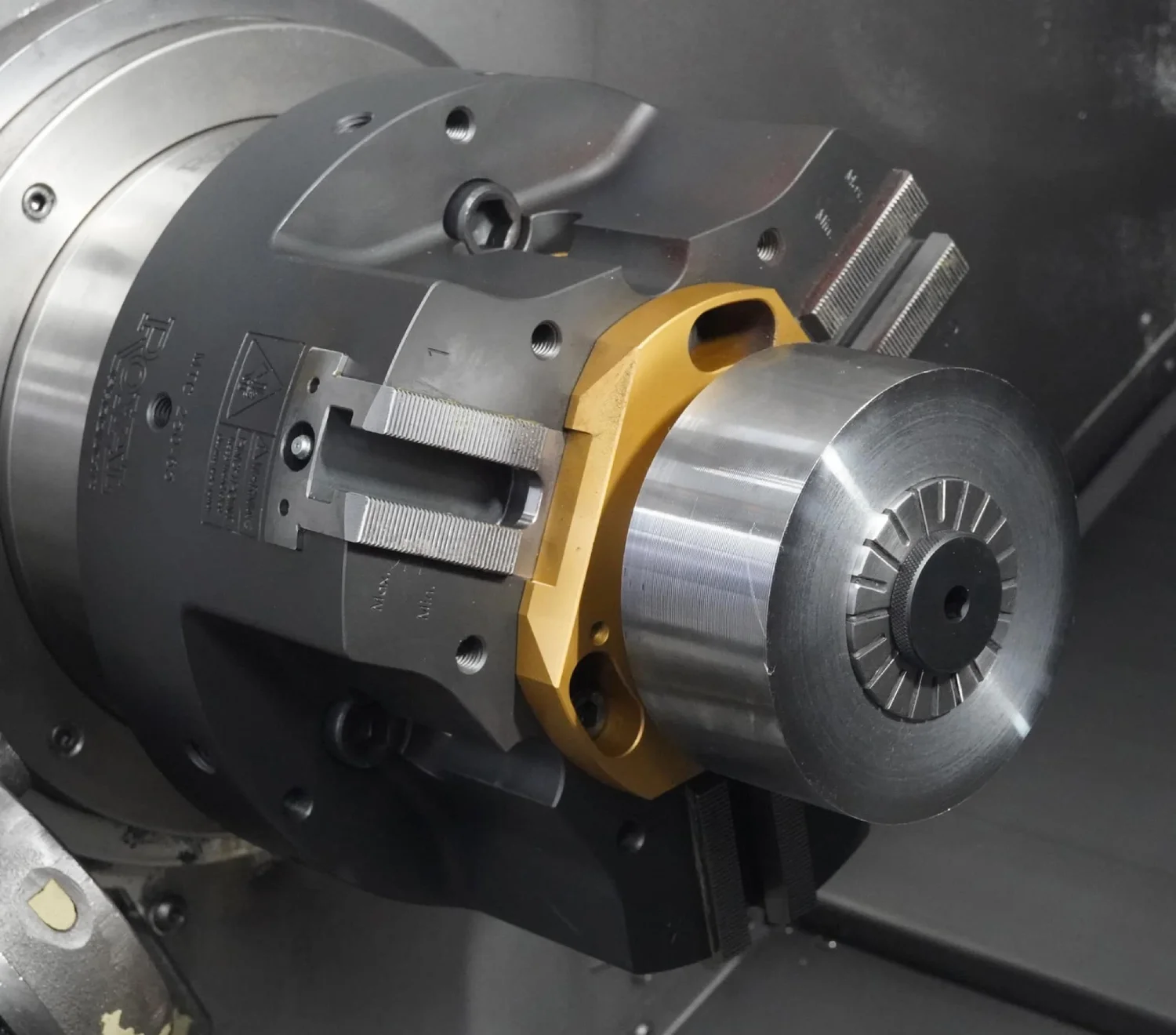

I.D. Gripping Mode

I.D. Gripping Mode

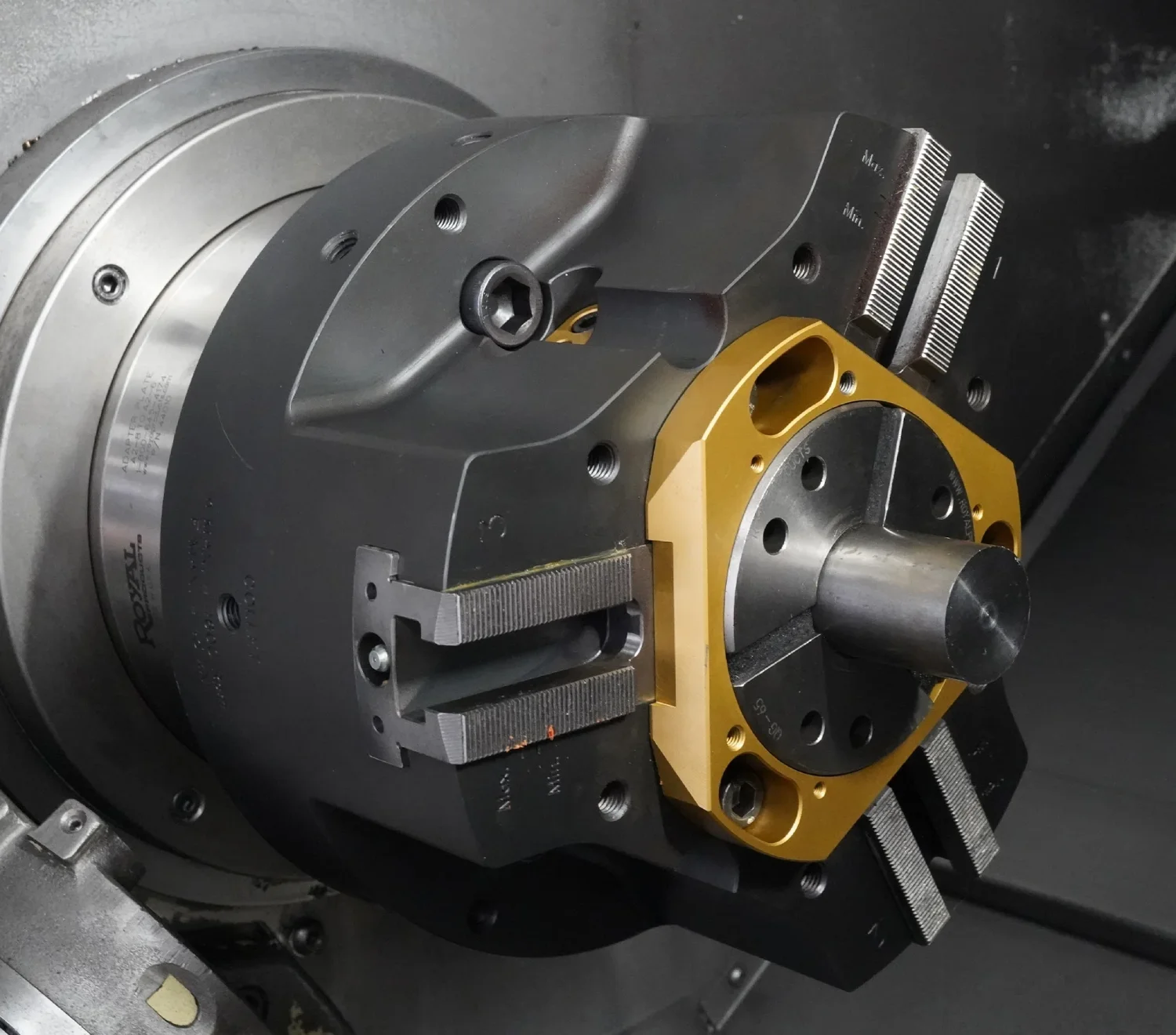

QG Collet Mode

QG Collet Mode

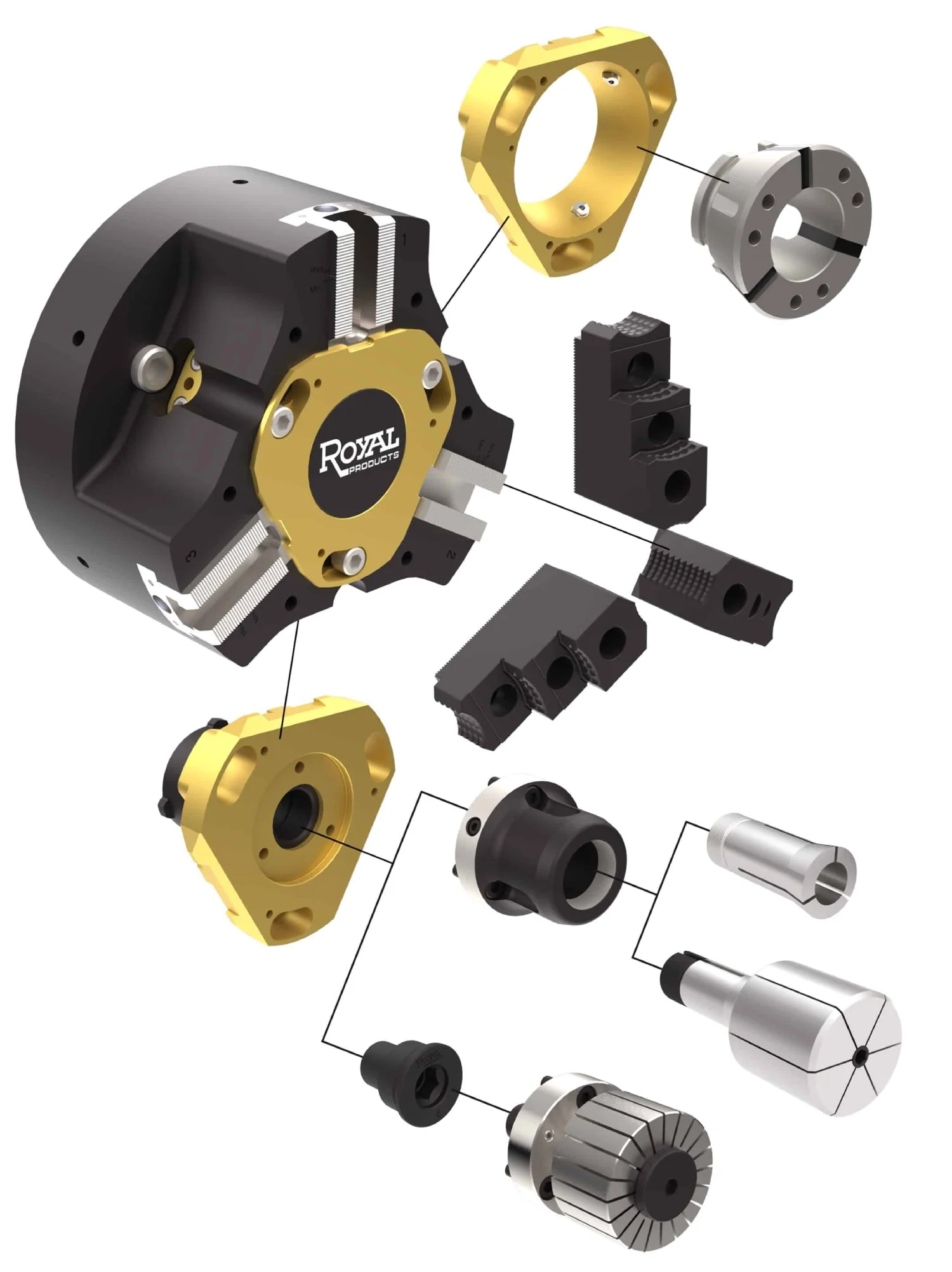

Completely Modular – Add Components as You Land New Jobs

MTC-Breakdown-scaled

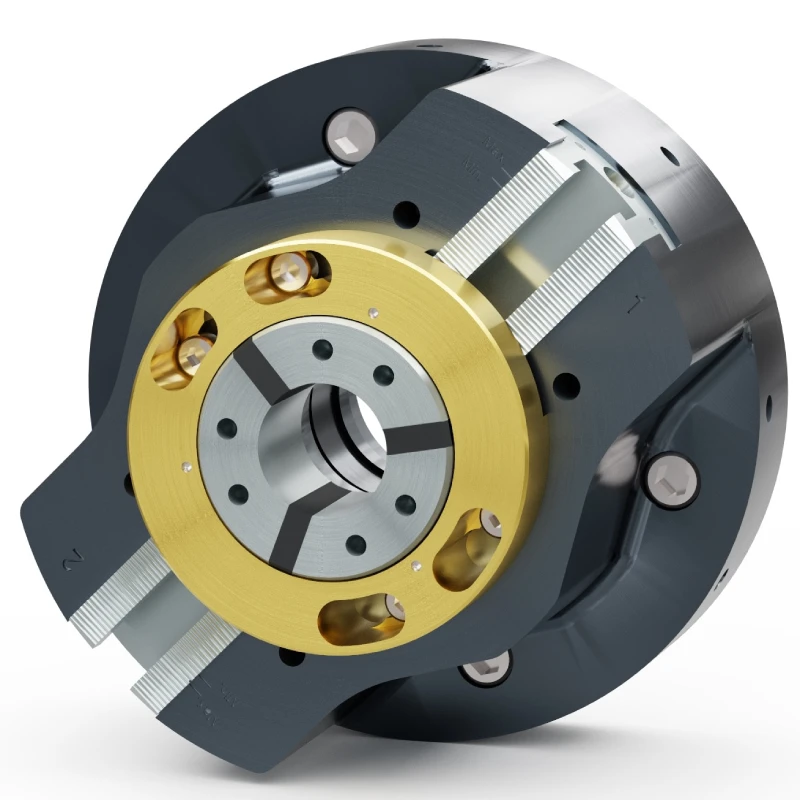

NEW for 2026 – Two-Jaw MTC™ Models

  • Great for non-cylindrical workpieces.
  • Contact Royal for ordering information.
2-jaw-black-rendering

Easy Single-Part Number Ordering

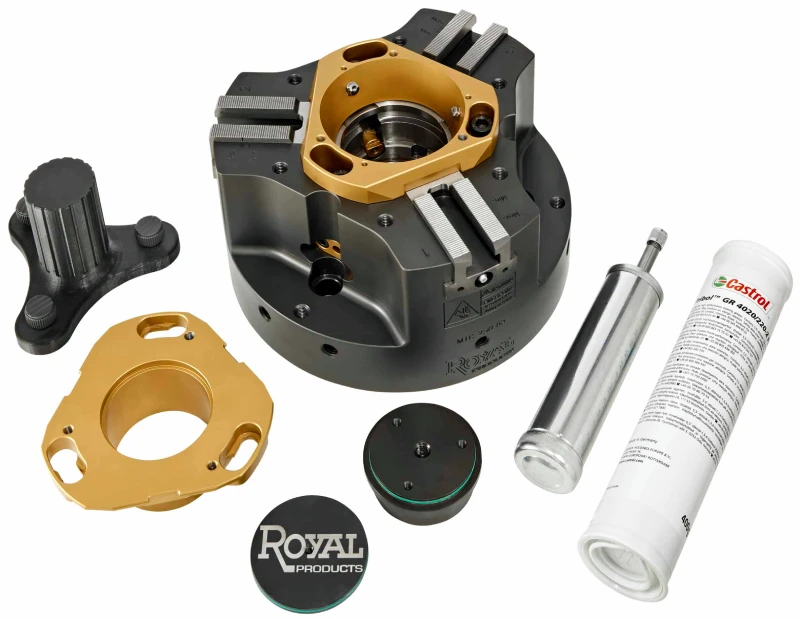

MTC_Group_1-scaled

The following items are included with every Royal MTC™ Multi-Tasking Chuck:

  • A 3-Jaw chuck featuring industry standard 60° x 1.5mm base jaws to accept a wide array of top jaws.
  • A removable internal workstop for use with both jaws and collets.
  • A Quick-Grip™ center hub hardened and precision ground to accept Royal Quick-Grip™ Collets.
  • A center hub removal tool.
  • A thru-hole center hub to accommodate long-parts when using as a jaw chuck.
  • A grease gun and tube of chuck grease.
  • A center cap to block chips from entering the drawtube when using the jaw chuck for slug work.
  • A hardened and ground backplate to suit your particular lathe’s spindle nose (not shown).
  • A custom-machined drawtube connector for hassle-free installation.

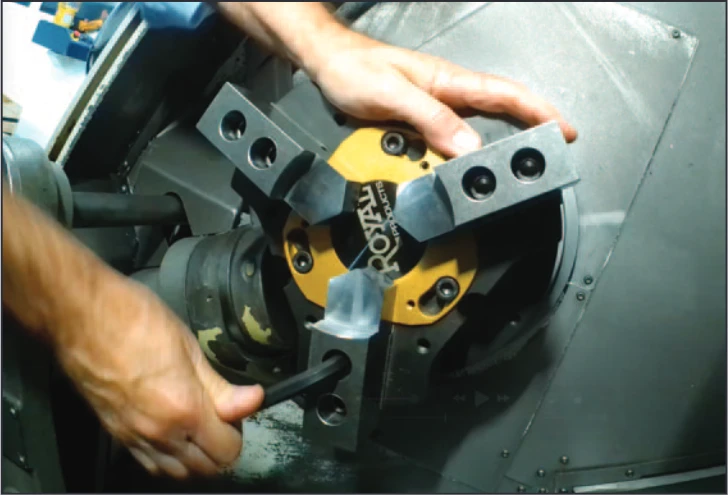

5C Collet Adapter

5C Collet Adapter
Reach out to see the Royal MTC™ in action!

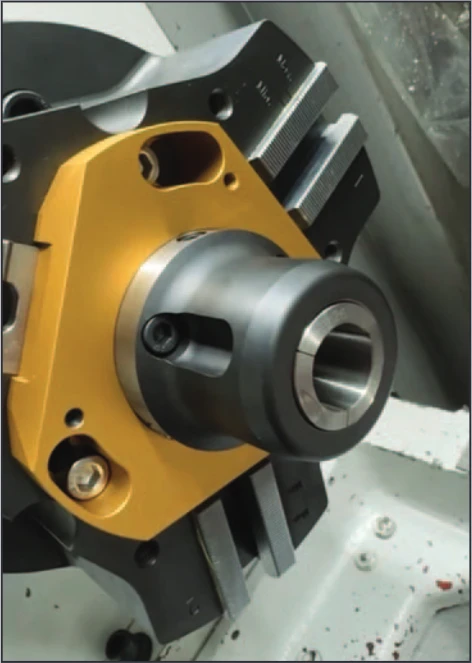

5C-Collet-Adapter 2
  • 5C collet adapter is great for workpieces smaller than 1" dia.
  • Utilizes the same center hub as the I.D. mandrel
  • Provides excellent tool clearance for small dia. work
